Copper stretch Products

  • Equipment
  • Parameters
  • Size
  • Configuration
  • Video
  • characteristy

Open single-point type

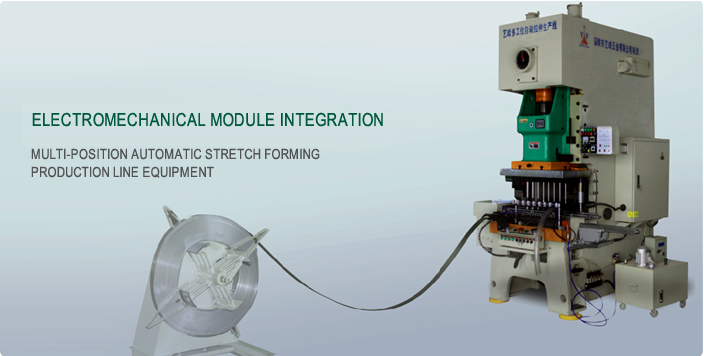

Open a single point (DZL-DKQ) " electromechanical analog integrated multi-station automatic stretch forming production line" specially designed equipment selection JH21 series of high-performance presses domestic reform , the use of integrated electromechanical analog technology to automatically expand the machine through the material , automatic feeder, high-performance multi-station presses, precision cam transmission, cam unloading system , multi-position flexible manipulator , top feeding system, multi-position continuous stretch molds, die lubrication systems , products, mold cooling system bi- level trimming die and mold automatic detection system , the product conveyor, scrap rewinding machines and other devices automatically complete material handling , blanking stretch , repeatedly stretching, punching, forming, internal and external thread forming, roll forming neck , trimming , necking , print , deburring processes , forming a one-time processing of the finished product .


Metal stamping company in the country stretching automation equipment major breakthrough in key technologies . Its key technology , has received six national patents.


This equipment is classified as 2004,2006,2007,2008,2009,2010 year technology project Bao’an District, Shenzhen Science and Technology Bureau , and a number of science and technology funding. December 2007 , by the Shenzhen Academy of Metrology and Quality Inspection detected , its corporate standard has been filed in Shenzhen City of Quality and Technical Supervision . January 2008 , through the identification of scientific and technological achievements of Shenzhen . 2009 , respectively , Bao’an District, Shenzhen Science and Technology Bureau issued a " Bao’an District, Shenzhen independent innovation products certificate" and the Shenzhen Municipal Science and Technology Bureau issued a " Shenzhen innovation products that certificate ." In 2010 , the company invested 2 million yuan specially developed " multi-station cans production line ."


This device can be widely applied to an aluminum alloy material ( such as 1060,6063,3003,3005 , etc. ) , stainless steel ( such as 301,304,305 , etc. ) , black metal (e.g., SPCC, SPCE, ST12, ST13 , etc. ) , various copper various kinds of metal materials ( such as H62, H65, H68, oxygen-free copper , etc. ) and various other products stretchable tensile automated mass production.


The devices are suitable for 8-16 stations , automation of various shapes of deep drawn stamping mass production , especially for the length / diameter larger or require special processing procedures ( such as side punching, printing, bump forming, embossing, flange forming, roll forming neck , forming patterns and external threads , etc. ) deep drawn stampings automated high-volume production economy .


This equipment can effectively reduce the production of deep drawn stampings costs:


A reduction in labor costs : This device can replace multiple traditional single -punch .


2 to reduce the cost of the mold : Mold combination punching modular design , the use of standard mold parts , mold manufacturing more economical, due to an accident in the mold using a mold automatic detection system and this design , the extent of damage can be minimized .


(3) reducing the mold design and manufacturing costs : Because the use of flexible multi-station transfer robot without stepping workpiece material transfer with a simple mold structure , components can be standardized design .


4 to reduce mold development costs : Because the employer can handle workpiece into any process conducted trial ; each station has a high degree of fine-tuning .


5 to reduce the cost of raw materials : the workpiece is made of flexible robot multi-station transfer ( step- mold material transfer need to connect with offcuts ) , the bandwidth can be maximized to reduce ; another can double cutting ( nesting ) more economical materials.


6 to reduce the unit cost of work : a station die fails, simply remove the repair or maintenance of the station die , thus reducing downtime.


7 reduction in the cost of storage and quality control : the number of semi-finished products is greatly reduced, without warehousing ; because the material from the device into the side , after several stretch forming equipment to complete the finished parts from the other side of it , you can put in storage . After each step without inspection and storage , can reduce damage and ensure the quality of the finished part .


8 reduce equipment maintenance costs : no big mold processing and handling equipment , because of the small die each individual station , easy to put on and remove from the press.



Table I:

Project

Unit

DZL-DKQ-63

DZL-DKQ-80

DZL-DKQ-110

Nominal force Capacity

KN

630

800

1100

Nominal power stroke Rated tonnage point

mm

4

5

5

Slide stroke Length of stroke

mm

140

160

180

Press trips strokes

SPM

45-85

45-75

35-65

Stretch forming Views Drawing times

SPM

50-80

40-70

30-60

Slider to adjust the volume Slide adjustment

mm

70

90

90

Max die height Alide adjustment

mm

300

350

350

Pitch station Pitch

mm

50-75

50-80

50-85

Number of stations Station No.

PCS

6-12

6-12

6-12

Main motor power Main moter

kW

5.5

7.5

7.5

Weight (about) Net weight

T

5

7

11



Table II:

Project

Unit

DZL-DKQ-63

DZL-DKQ-80

DZL-DKQ-110

Nominal forceCapacity

KN

630

800

1100

Nominal power stroke Rated tonnage point

mm

4

5

5

Slide stroke Length of stroke

mm

140

160

180

Press trips strokes

SPM

45-85

45-75

35-65

Stretch forming Views Drawing times

SPM

50-80

40-70

30-60

Slider to adjust the volume Slide adjustment

mm

70

90

90

Max die height Alide adjustment

mm

300

350

350

Pitch station Pitch

mm

50-75

50-80

50-85

Number of stations Station No.

PCS

6-12

6-12

6-12

Main motor power Main moter

kW

5.5

7.5

7.5

Weight (about) Net weight

T

5

7

11



Table 3:

Project

Unit

DZL-DKQ-160

DZL-DKQ-200

DZL-DKQ-250

Nominal force Capacity

KN

1600

2000

2500

Nominal power stroke Rated tonnage point

mm

6

6

6

Slide stroke Length of stroke

mm

200

250

250

Press trips strokes

SPM

30-55

25-40

25-40

Stretch forming Views Drawing times

SPM

25-50

20-35

20-35

Slider to adjust the volume Slide adjustment

mm

100

110

110

Max die height Alide adjustment

mm

450

450

500

Pitch station Pitch

mm

50-120

50-200

50-200

Number of stations Station No.

PCS

6-12

6-12

6-12

Main motor power Main moter

kW

15

15

22

Weight (about) Net weight

T

16

23.5

31




 Table I:

Project

Unit

DZL-DKQ-16

DZL-DKQ-25

DZL-DKQ-45

Table board size (about * before)Bolster area

mm


550*400

700*400

810*440

Size slider bottom (or so * before and after)Slide area

mm

200*180

360*250

410*340

Dimensions (about)Overall dimensions

mm

900*1580*1880

1095*1685*2225

1165*1893*2678



Table II:

Project

Unit

DZL-DKQ-63

DZL-DKQ-80

DZL-DKQ-110

Table board size (about * before)Bolster area

mm

870*520

1000*560

1070*680

Size slider bottom (or so * before and after)Slide area

mm

480*400

560*430

630*520

Dimensions (about)Overall dimensions

mm

1235*1945*2708

1425*2155*3000

1530*2065*3030



Table 3:

Project

Unit

DZL-DKQ-160

DZL-DKQ-200

DZL-DKQ-250

Table board size (about * before)Bolster area

mm

1300*760

1400*840

1500*930

Size slider bottom (or so * before and after)Slide area

mm

760*600

860*650

930*700

Dimensions (about)Overall dimensions

mm

1750*2390*3740

1830*2740*4120

1885*2980*4545


1 This device may be material transport , blanking stretch , repeatedly stretching, punching, forming, internal and external thread forming, roll neck shaping , trimming , necking , print, deburring processes combined with manual , inch move, a single run , frequency control for continuous operation , positive and emergency stop functions.

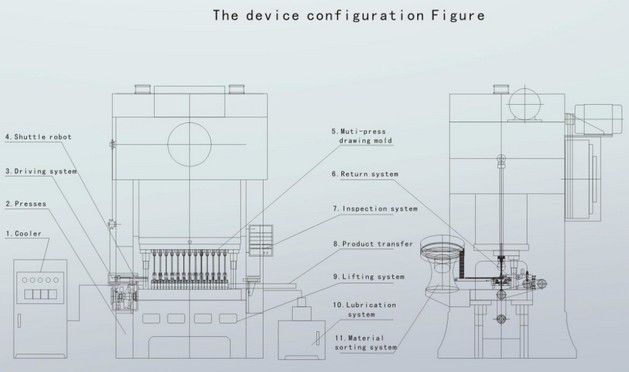

2 This device configuration : material automatically expand , automatic feeder, high-performance multi-station presses, precision cam transmission, cam unloading system , multi-position flexible manipulator , top feeding system, multi-station continuous stretch molds, die lubrication systems , products, mold cooling system , bi- level trimming die and mold automatic detection system , the product conveyor, scrap rewinding machines and other devices.

3 multi-station presses , the body of steel plate welded structure , PLC electrical control system , can be used with a variety of automation equipment, high precision, long life and stable performance.

4 multi-position by a flexible manipulator arm , clip, skateboards and other transmission components, stationary items like a human finger grip , reliable products to ensure a smooth , accurate delivery, low noise ; replace only the clips can accommodate many varieties ;

5 multi-position flexible manipulator with high-performance multi -station presses, multi-station dies synchronized continuous stretch of strong , stable and reliable ;

6 with spring , pneumatic ejector system and cam stripper system to ensure back material is accurate, stable and reliable, ensuring the continuous automatic production equipment .

7 high-precision multi-station continuous stretch forming mold , using customized tungsten steel, with Japan Sodick walking Sijia parts , high-precision digital grinder grinding (0.001mm) processing, and use of advanced surface processing technology, long die life , high precision , high hardness , and has good heat resistance and corrosion resistance, product quality and stability of production .

8 products die lubrication system, automatic lubrication , use high-pressure vane pump oil to ensure a reliable supply of each stretching station ; each station fuel supply optional adjustable oil separator , balanced , smooth stretch forming of the workpiece .

9 bi- level trimming die agencies, stretching the workpiece passes precisely through a multi -station to the bi- level flexible robotic trimming trimming die , and then put on the product conveyor, to achieve a multi-station automatic continuous stretching and trimming .

10. Die automatic detection system to detect the workpiece in the drawing production process, whether the normal stretching , if unusual, lack of product in place to detect such phenomena as well as working conditions and nesting manipulator , control multiple presses automatically shut down, ensure continuous stretch multi-station and multi -station mold flexible robot safety.

11 volumes expected by the material automatically expand and automatic feeder automatically feeds , through multi-channel stretch forming and cutting edge products, by product conveyor is automatically transferred to the next production process .

12 Compared with similar foreign products , versatility, can be designed to transform the existing presses, simple structure, easy maintenance and adjustment , the price is only 1/6-1/8 abroad .

13 compact production line , small footprint , because one of the devices can replace multiple traditional single -punch .
